ASTM Floor Tread Plate has Anti-Slip Properties and Usefulness for Walking Surfaces of Raised with Diamond-Shaped Pattern,Black Diamond Plate -Tread 4' X 4" Each and .1 Thickness

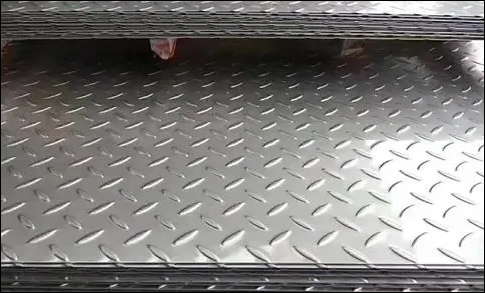

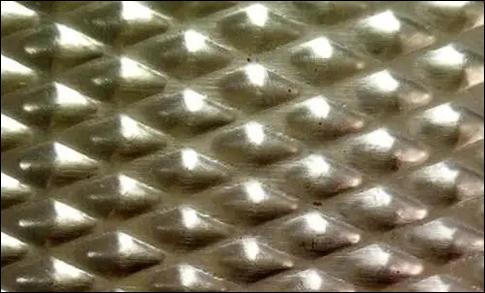

Steel diamond floor plate is a hot rolled steel also known as tread plate. Diamond tread plate are commonly used for durable, anti-slip surface for flooring, loading ramps, trench covers, dock flooring, stair treads, elevator floors, freezers floors, surfaces, vehicle running boards, and structural, architectural and cosmetic applications. The raised diamond pattern provides not only a heavy-duty look but also added traction in any industrial setting. 6061 aluminum diamond tread plate have strength, skid resistance and durability. Stainless diamond plate has a raised diamond lug pattern that provides excellent skid resistance for a wide range of applications.

Diamond pattern tread plate flooring has a male/female interlocking design and can be installed over structural members to provide a solid, skid resistant flooring. Diamond tread plate flooring for a commercial project has determined the slip-resistance of the flooring.

Solid Tread Plate can be used to cover surfaces with holes to allow for wheelchair and high heel traffic. Optional edge bands or wedges along the length of the panel, make it easier for wheelchairs and other wheel cart traffic to roll up onto the floor surface. The two styles of edge bands are “A” and “B.”

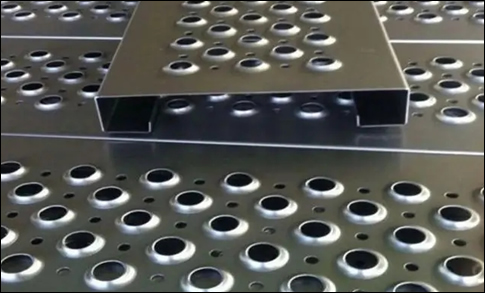

The self-cleaning, ventilated design allows dirt, grease, snow, etc. to fall through while the punched diamonds are small enough to catch most falling items such as tools.

ASTM Diamond plate below is the sizes

MATERIAL DESCRIPTION Type Size Internal Reference
3/16"  TREAD PLATE A36     (face down)   CS 60"X158" H3/16" DTP 4000x1525x6
3/16"  TREAD PLATE A36     (face down)   CS 60"X126" H3/16" DTP 3200x1525x6
3/16"  TREAD PLATE A36     (face down)   CS 60"X113" H3/16" DTP 2860x1525x6
3/16"  TREAD PLATE A36     (face down)   CS 48"X115" H3/16" DTP 2920x1220x6
3/16"  TREAD PLATE A36     (face down)   CS 48"X88" H3/16" DTP 2235x1220x6

Tread Plate Flooring Features:
· Available in solid or punched
· Slip resistant
· Lightweight
· Easy to install
· Corrosion resistant
· Attractive
· Versatile
· Self cleaning
· Solid surface ADA Requirements for Spacing Met
· Interlocking

Specification


3003-H22 ALUMINIUM DIAMOND TREAD PLATE
(3.00 MM) THICKNESS X 4FT X 8FT
(3.00 MM) THICKNESS X 5FT X 10FT


Floor Plate Aluminium Alloy
Lg 3.60 mtrs
Width 0.91 mtrs
Thk 6.3 mm

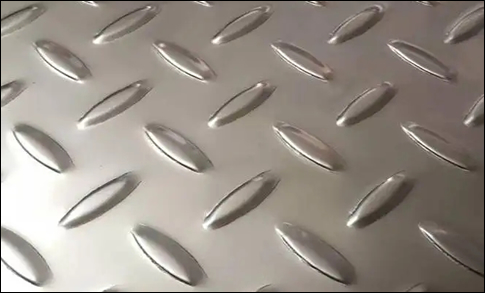

Plates 3 bar tread plates
Matt finish.


Diamond Aluminum Tread Plate
Specification (inch) : 0.063×48×96, 0.063×48×120, 0.250×48×120
Grade: 3003
Temper: H224/H244

Serrated Aluminum Tread Plate
Specification (inch): 0.125×48×96, 0.250×48×192
Grade: 3003
Temper: H224/H244


Tread Plate Flooring
Plain steel/hot rolled, 11 gauge, mill finish surface
4% open area, sheet, 36'' width x 120'' length.
