Aluminum Tread Plates is a aluminum rolled sheet. It has a raised diamond or linear pattern on one side and is smooth on the other side, durable and corrosion-resistant. We offer light-gauge, polished aluminum industrial flooring with an embossed or checkered tread plate finish. Aluminum Tread Plate 3003 is a textured plate of 3003 aluminum alloy as well as 5086 and 6061 alloys.
5 Bar Aluminium Tread Plat
AA 3105 F
Quantity, abt 18-20 tons per container pr abt 600 pcs
Weight of 4’ x 8’ x 4mm thks, 5 Bar,
The thickness of 4 mm is purely 4mm the base thickness and it do not include the Right height thickness of the 5 bar thread.
Technical Specification of Aluminum Tread Plate for Transportation
Features:
Aluminum tread plate is light, durable, making projects easier to cut and form than the heavier gauge product. It is also more cost-effective, making it the best choice to be used in place of traditional, heavy-gauge tread plate.
Specifications:
We offer full range of strong, functional, light gauge aluminum sheet, embossed with a durable tread plate design.
We provide all the measurable weight and cost savings benefits of aluminum with the visual impact of high strength construction. This innovative and flexible tread plate enhances appearance and durability of your finished products.
We offer the following customized products:
Rectangles of aluminium tread plate one bar and 2 MM thick plate.
740mm wide by 335mm and 255mm depths.
2mm or 3mm aluminum 5-bar checker plate. Finish could be mill grade or bright, whichever costs less. Prefer a 3003 or 5083 alloy, whichever costs less. If you do custom cuts, 35 5/8"W x 23 5/8" H (approximately 900mm x 600mm) sheet, or the dimensions on next available larger stock size.
Aluminum 5 Bar Tread Plate Size: 4.0/5.5 x 1068 x 2236 mm
Aluminum 5 bar tread plate(ALMG3-H 114) DIN EN 1386
Size: 4.0/5.5 x 1068 x 2236 mm
Micro tread plate aluminum use for RC cars. basically it’s tread plate but the diamonds are only .25” to .5” long.
Sheets of 5 bar aluminum tread plate, 3mm x 1200mm x 3000mm.
Material use: will be used as a floor for cold rooms, heavy forklift traffic.
Sheets of .063 x 48" x 96" 5 bar aluminum tread plate.
2 bars Aluminum Tread Plate
・A5052 The temper of the tread plate is H112
・Thickness 2.0mm, 2.5mm, 3.0mm, 4.5mm
・Size is 1250mm*2500mm
・Bar height 1.0mm
・Non gloss

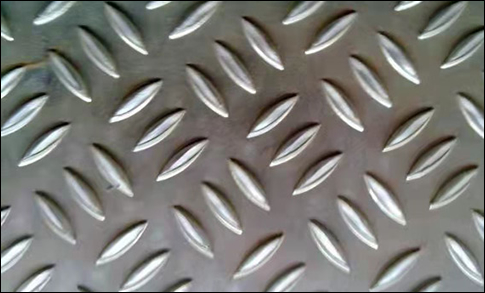

5 bars Aluminum Tread Plate
・A5052 The temper of the tread plate is F
・Thickness 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.5mm, 6.0mm.
・Size is 1250*2500
・Bar height 1.5mm
・Non gloss
125x48x92 5086-H34 Diamond Tread Aluminum Plate
checker plate(tread plate) thickness is 9~10mm(3/8 inch)
Material : 5083 or 5086
Temper : standard H112, H114, H116
Thickness : 9~10mm(3/8 inch)
Parttern : one bar or five bar
Document : EN 10204 3.1 or inspection of class(EN 10204 3.2)
Aluminium tread plates 5 bars EN AW-5754 (Al Mg 3) H114
2x1250x2500
2.5x1250x2500
3 x 1250x2500
5 x 1250 x 2500
Aluminum Tread Plate, Size: 5mm x 4feet x 8 feet
Material: Aluminium tread plate
Thickness: 4.8 mm
Width: 1219.00 mm(4 feet)
Length: 2438 mm(8 feet)
Alloy Number: 3003
Temper: H14
Standard: ASTM B 209
Appearance: Aluminium sheet should be free from any marks
| Alloy | Thick | Width | Length | Lbs/each |
| 2124-T851 | 1.25 | 48 | 144 | 912 |
| 2124-T851 | 1.25 | 53 | 103 | 720 |
| 2124-T851 | 1.25 | 54.5 | 142 | 1021 |
| 2124-T851 | 1.25 | 59 | 128 | 997 |
| 2124-T851 | 3.00 | 53 | 54 | 906 |
| 2124-T851 | 3.25 | 53 | 110 | 2000 |
| 2124-T851 | 2.75 | 48 | 130 | 1812 |
| 2124-T851 | 3.00 | 49 | 132 | 2049 |
| 2124-T851 | 3.00 | 50 | 110 | 1742 |
| 2124-T851 | 3.00 | 52 | 105 | 1729 |
| 2124-T851 | 3.00 | 52 | 146 | 2405 |
| 2124-T851 | 3.00 | 56 | 140 | 2483 |
| 2124-T851 | 3.50 | 51 | 104 | 1960 |
| Alloy | Thick | Width | Length | Lbs/each |
| 7475-T7351 | 1.50 | 60 | 136 | 1236.2 |
| 7475-T7351 | 2.25 | 60.5 | 133 | 1828.6 |
| 7475-T7351 | 4.00 | 60 | 144 | 3490.6 |
Aluminum plate .080 and .125 thickness 48x96 inche sheet, red or black aviable
Aluminum thread plate 3003 H22 3mm 4’ x 10’
Tread Plate Aluminum with 10mm thickness 1.37 (or 1.60m) X 0.92cm x 10mm
5 Bar Aluminium Tread Plate alloy 5052 T H114 - Painted Coral Black one side.

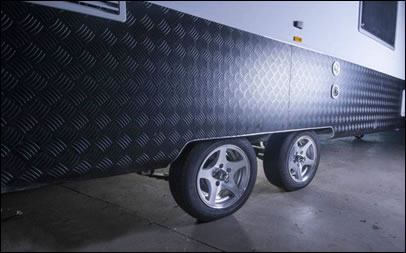

The Tread Plate strips are run along the bottom of Caravans.
Alloy: 5052, Temper H114
The thickness is 1.2mm.
Width sizes are 400 and 600mm
Lengths cut range from 4550 to the longest 7550m - are able to offer the longest length cut and painted at 7550m. (The client needs one length, no joins/welds - painted)
The product is powder coated painted 5 Bar Tread Plate. Paint colour to match, Coral Black Gloss GN063A (Gloss Finish).
The end use of the product is Tread Plate strips which run along the bottom of Caravan Cladding. The product is supplied in shorter lengths and joined on the side of the caravan.
There is a join in the tread plate. This is what the customer is trying to avoid going forward, they want one continuous length for the side of the caravan. Hence the long lengths in the dimensions of 7550mm and 6980mm for example. The end use is a larger caravan manufacturers are now looking at attaching this strip in one length (without joins).
5 Bar Aluminium Tread Plate alloy 5052 T H114
RFQ RBM20160811: Painted 5 Bar Tread Plate - Coral Black one side
| Type | Photo/Design | Gauge (mm) | Width (mm) | Length (mm) | Weights (Kg) | Finish | Alloy | Temper | Finish Detail / Specs / Notes |
| Painted 5 Bar Tread Plate - Coral Black one side |  |
1.2 | 400 | 7550 | 2087.00 | Mill Finish | 5052 | H114 | Painted Coral Black one side. The product is powder coated painted 5 Bar Tread Plate. Paint colour to match is the Australian Interpon, Coral Black Gloss GN063A (Gloss Finish). |
| 6980 | 2894.00 | ||||||||
| 6230 | 2583.00 | ||||||||
| 5580 | 2314.00 | ||||||||
| 4550 | 1258.00 | ||||||||
| 600 | 7550 | 3131.00 | |||||||
| 6980 | 4342.00 | ||||||||
| 6230 | 3875.00 | ||||||||
| 5580 | 3471.00 | ||||||||
| 4550 | 1887.00 |
Application - Caravan
Alum Tread Plates (EN AW-5754-0) 5 Tread
1.22m*2.44*1.5mm
1.22m*2.44*2.0mm
1.22m*2.44*2.5mm
1.22m*2.44*3.0mm
1.0m*2.0*1.5mm
1.0m*2.0*2.0mm
1.0m*2.0*2.5mm
1.0m*2.0*3.0mm
ALUMINIUM TREAD PLATE GRADE 5251 “O” TEMPER
Size: 3 x 1640 x 1720mm
ALUMINIUM TREAD PLATE GRADE 5251 ‘O’ TEMPER ( bendable) , H114
Size: 8 x 1200 x 2400mm
specification: DEF STAN 02-740 – Issue 2
size: 910.00mm width; 5.600mm thickness; 3.200mm base thickness; 3600.00mm length; 10.28kg/sq metre weight approx
6061-T6 or AW-5754-T114 alloy rolled tread & 5052-H32 alloy plate in accordance with ASTM B632/B632M or EN 482-5
3.2 mm or 0.125" thick, 1500 mm or 59" x 3000 mm or 118"
1/85” aluminum tread plate 4’x4’ with the european design
Availability of H34 or similar grade aluminium tread plate
3mm Grade H34 hardness (in 5052, 5251, 3003 ) or similar aluminium tread plate (yield strength of circa 180Mpa+) for use on a trailer in place of 2.5mm G250 steel plate. Ideal size would be 4 pieces of 3 x 605 x 1215.
Aluminum tread plate that is 8 - 10" wide with a 90 degree bend ob the front edge that is about 1" 1/6" thick.
