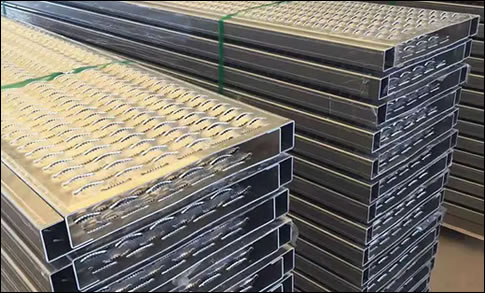

Stair treads and bar grating walkways are commonly installed for industrial,stair treads are designed to offer protection in industrial facilities or outdoor sites where slippery conditions may be present. the steel grating stair tread can be plain or have a serrated surface. Stair treads can be supplied in a range of metal sheets and plates.
Metals: Stainless steel: all grades including 304, 316; Aluminium: all grades including 1,000, 3,000 and 5,000 series; Galvanized steels and other metals.

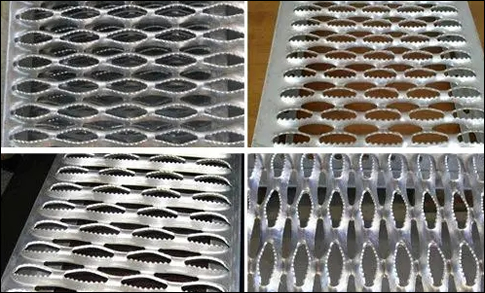

Serrated stair treads provide maximum slip resistance with projections provide good slip resistance that's more comfortable than serrated.
Stair Tread Plate Lengths:
Metric: Standard lengths are 2m, 2.5m and 3,0m.
USA standard lengths: 96'' and 120''.
Custom lengths are available.
Stair Tread Plate Width:
Metric: Standard widths are 1m and 1.250m.
USA standard widths are 36'' and 48''.
Custom width is available.

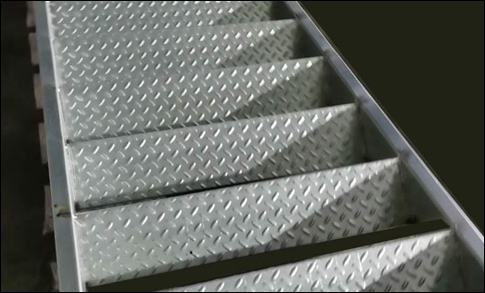

Non slip diamond pattern stair tread has a male/female interlocking design and can be installed over structural members to provide a solid, skid resistant flooring.
Non-slip solid tread plates can be used to cover surfaces with holes to allow for wheelchair and high heel traffic. Optional edge bands or wedges along the length of the panels, make it easier for wheelchairs and other wheel cart traffic to roll up onto the floor surface. The two styles of edge bands are “A” and “B.”
The self-cleaning, ventilated design allows dirt, grease, snow, etc. To fall through while the punched diamonds are small enough to catch most falling items such as tools.
Non slippery tread plate flooring features:
· Available in solid or punched
· Slip resistant
· Lightweight
· Easy to install
· Corrosion resistant
· Attractive
· Versatile
· Self cleaning
· Interlocking
Specification:
Chequer plate stair tread
size: 800mm x 300mm x 50mm x 50mm x 6mm (thk)
material: mild steel
Checker Plate Stair Tread Nosings
steel fire escape treads are 1" serrated grating 3/16" nose pieces welded to the grating,the tread clip angle need to be under the nosing, the tread width is 28-29 inches.
Stair treads from welded grating 34х38/30х3mm, Zn, with frame, size 800х240mm.
Stair nosing for wooden stair treads.
36” lengths and one 48” length of 1 1/4” x 1 14” chequered galvanized steel stair tread nosing.
Galvanized grating stair tread 245x1000 mm with accessories.
Alloy dimple plate after full sheets sizes, planks and stair tread sizes and specs.
Diamond chequered tread plate covers for wooden stair treads, with each tread having 8” depth, 1” thickness, and 1” bullnose overhang.
Hot dip galvanized grating stair tread 245x1000 mm with accessories
ASTM A36 or Equivalent & Hop dip galvanizing ASTM A123, hot dip galvanized,BS 4360 GRADE 43A 35x215x915 mm.
Stair treads 1200 x 290 and stair treads bolts
Materials: S235 KL+20
Half moon shaped metal tread plates to install on hardwood stair treads in a residential setting, black or stainless.
| ALUMINUM | GAUGE, THICKNESS | LENGTH WIDTH | TONS |
| NON-SKID PLATE | 19 | 4x10 FEET | 3 |
| ALLOY 3003 h22 | 18 | 4x10 FEET | 3 |
| BRIGHT FINISH DIAMOND GRINDING | 16 | 4x10 FEET | 3 |
| 14 | 4x10 FEET | 3 | |
| 12 | 4x10 FEET | 3 | |
| 1/8" | 4x10 FEET | 3 | |
| 3/16" | 4x10 FEET | 3 | |
| 1/4" | 4x10 FEET | 3 |

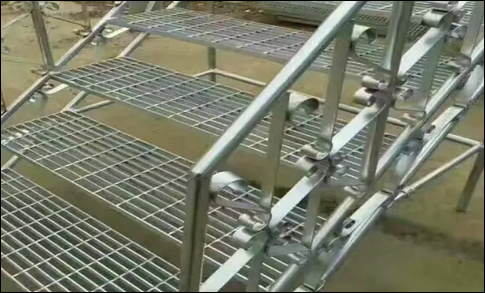

Galvanized stair treads bar grating
Stair Treads in residential, industrial and architectural applications.
Risers and stair treads are galvanized with handrails that are safety painted tubular steel
Metal anti-slip stair treads and plate for conveyor cross over for large processing facility
