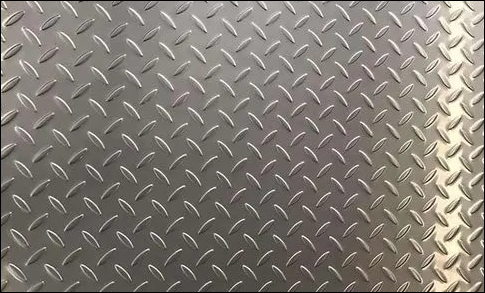

Checkered Plate is one kind of anti-slippery tread plates characterized by beautiful appearance, good strength, light weight, metal material saving and many other advantages. Checkered steel tread plate is a thin, flat sheet of metal with a pattern of raised lines or diamonds on one side, while the reverse side is blank. Chequered tread plates are mainly used in construction of floor plate for waste water plant, water treatment, power plant, chemical plant platform, public passages, auto parts, offshore and ship buildings.

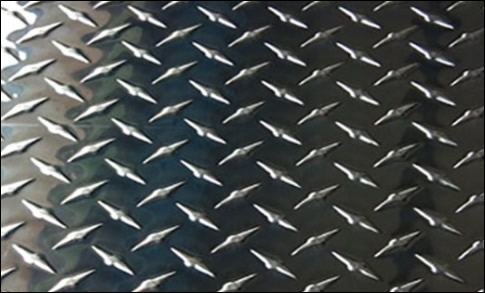

Diamond checkered steel plate with concave and convex patterns on the surface, this type of steel plate is called checkered tread steel plate. They have excellent resistance of corrosion. In addition, checker pattern tread plates have a good look.
Our company can roll/press a tread pattern into various stainless steel materials. Technical details about the patterns, dimensions, raw materials and thicknesses are as following:
1) Tread designs we offer
a. Diamond
b. Five Bar
c. Tear Drop
d. Boomerang
2) Grades of stainless we offer
a. 304/304L
b. 316/316L
c. UNS S41003/1.4003
3) Material thickness we offer
a. 2mm
b. 3mm
c. 4mm
d. 4.5mm
e. 6mm

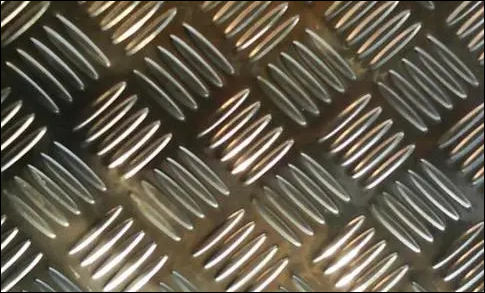

5 bar chequered tread plate
5 Bar and Diamond-Patterned Tread Plate :
TEMPER : F/H14/H24/H244/H18/H19
THICKNESS : min. 1.20 mm -max. 3.00mm
WIDTH : min. 1000mm-max. 1500mm
LENGTH : min.500mm-max. 5500mm
Classic Embossed and Diamond-Patterned Embossed Roll, Strip and Plate
TEMPER : 0/H111/H1X/H2X/H3X
THICKNESS : min. 0.35mm-max. 1.50mm
WIDTH : min. 100mm-max. 1500mm
LENGTH : min.500mm-max. 5500mm
Technical Info:
Standard width for checker tread plate: 1.25m
Gauges : 0.8, 1.2 & 1.5mm
Standard followed: Chinese standard: GB/T3618-89
Specification: 1.0-5.0X1000-2400X1000-10000
Temper: H14, H24, H18, M
Plate Sheet Specification:
Thickness: 0.15mm--12mm
Width: 600mm--2000mm
Strip Specification:
Thickness: 0.1mm--3.0mm
Width: 10mm--1800mm
Our custom products：
48 x 96 checkered steel sheets
Plates steel Checkered Quality ASTM
Size 6.35 x 4' x 8'
Checkered Plate SS304 10mm x 1220MM W x 2440mm L
Checkered Stainless Steel Tread Plate
Specification: ASTM A420, SS316L
8mm thick + 2mm checker height
Sizes: 2 X 6 M, 2.5 X 6 M and 1.5 X 6 M
430 Stainless Steel checkered Tread Plates
Thickness= (0.5 mm, 0.7 mm, 0.8 mm, 1mm, 1.2 mm, 1.5mm, 2mm) it is acceptable one of this thicknesses.
Surface= 2B (Cold rolled flat Steel) and Lampoon (Grindling) and PVC
Sheet plates for the dimensions below:
1000x2000 mm 1250x2500 mm or 1500x3000 mm
304 Stainless Steel Checkered Tread Plate
Thickness= (0.5 mm, 0.7 mm, 0.8 mm, 1mm, 1.2 mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm) (it is acceptable one of this thicknesses)
Surface= 2B (Cold rolled flat Steel) and Lampoon (Grindling) and pvc
Sheet plates for the dimensions below;
1000x2000 mm or 1250x2500 mm or 1500x3000 mm
ISO 9001 certification
Stainless Steel type 316 tread / tear plate
3000 mm x 1500 mm x 3 mm
Stainless Steel 304 Tread Plates
